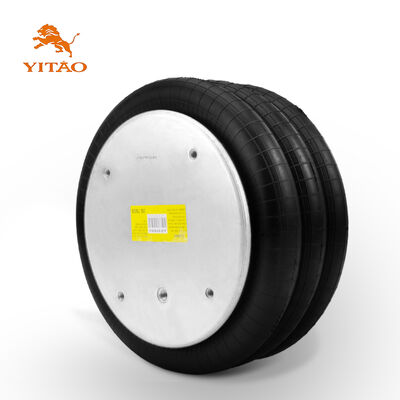

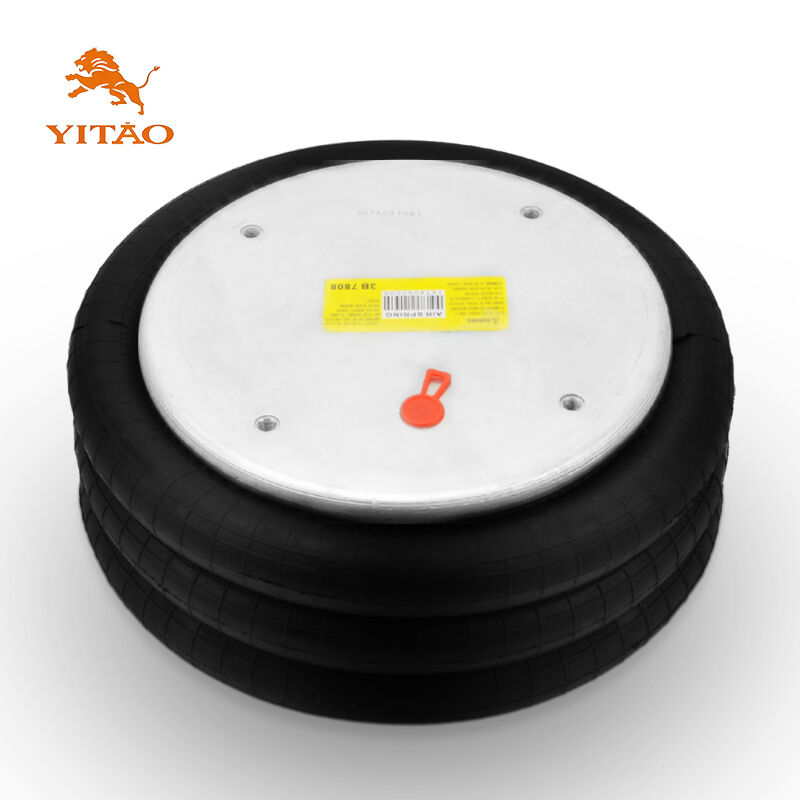

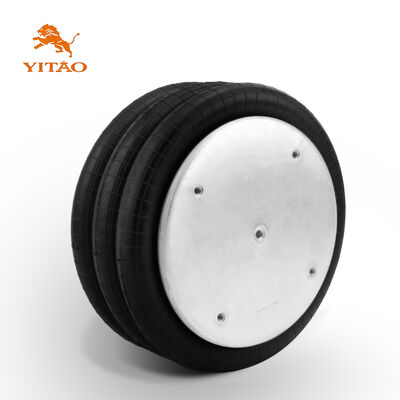

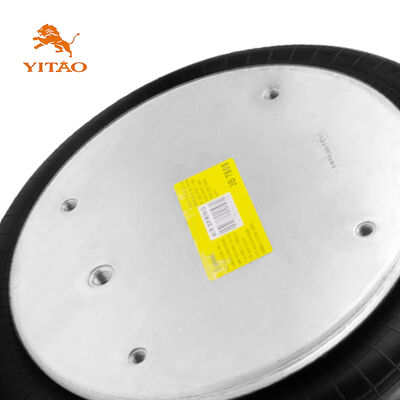

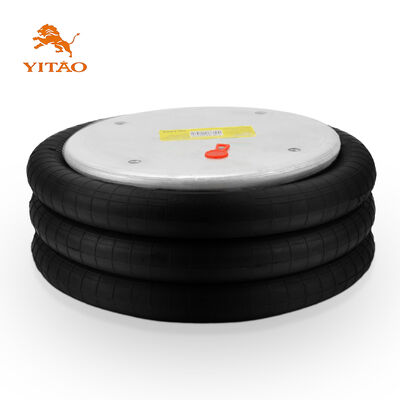

Contitech FD330-22364 Airkraft 115061 Triple Convoluted Air Spring

Contitech FD330-22364 Airkraft 115061 Triple Convoluted Air Spring
Contitech FD330-22364 Airkraft 115061 Triple Convoluted Air Spring Contitech FD330-22364 Airkraft 115061 Triple Convoluted Air Spring Contitech FD330-22364 Airkraft 115061 Triple Convoluted Air Spring Contitech FD330-22364 Airkraft 115061 Triple Convoluted Air Spring Contitech FD330-22364 Airkraft 115061 Triple Convoluted Air Spring

Large Image :  Contitech FD330-22364 Airkraft 115061 Triple Convoluted Air Spring

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 3B 7808/03B 7808
Payment & Shipping Terms:
Minimum Order Quantity: 50pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 1 ~ 30 days
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

Contitech FD330-22364 Airkraft 115061 Triple Convoluted Air Spring

Description
OE Number: W01-358-7808,FD330-22364,2B12-313,459,578933350,SC2031,115061,3B-356,M3533,1003587808C,S13157,55000030,6319,4336,8030170,3547808,554801C1,63640,57007808 YITAO Number: 3B 7808
Shipping Time: 3-10 Days Warranty: 12 Months
Type: Air Spring, Suspension Spring Main Material: Rubber+Metal
Packing: Neutral Packing Or Customized Packing
Highlight:

Contitech FD330-22364 air spring

,

Triple convoluted air ride spring

,

Airkraft 115061 air spring

Contitech FD330-22364 Airkraft 115061 Triple Convoluted Air Spring
High-quality triple convoluted air spring designed for optimal performance and durability in industrial applications.
Cross References
Brand Reference Numbers Numbering Discrepancy
FirestoneW01-358-7808W013587808 / W01-358-7808 / W01 358 7808
ContitechFD330-22364FD33022364 / FD330-22364 / FD330 22364
Goodyear2B12-3132B12313 / 2B12-313 / 2B12 313
Goodyear459:459
Goodyear578933350:578933350
LelandSC2031SC2031 / SC2031 / SC2031
Airkraft115061:115061
Airkraft3B-3563B356 / 3B-356 / 3B 356
Brake&WheelM3533:M3533
Ridewell1003587808C:1003587808C
HendricksorS13157:S13157
Peerless55000030:55000030
Triangle6319:6319
Triangle4336:4336
El Ride8030170:8030170
Dayton3547808:3547808
Navistar554801C1:554801C1
Truck stell63640:63640
SAF Holland57007808:57007808
Technical Specifications
Specifications Parameters
Outer diameterφ356
Weight10.913k
Net weight10.11kg
Package Dimensions39*39*25.5cm
Natural height281mm
Maximum height120mm
Minimum height480mm
Extended Height/
Compressed Height/
Top Plate Width289mm
Piston Width289mm
Product Drawings & Images
Contitech FD330-22364 Airkraft 115061 Triple Convoluted Air Spring 0
Contitech FD330-22364 Airkraft 115061 Triple Convoluted Air Spring 1
Factory Overlook
Contitech FD330-22364 Airkraft 115061 Triple Convoluted Air Spring 2
Quality Control Inspection
Contitech FD330-22364 Airkraft 115061 Triple Convoluted Air Spring 3
Manufacturing Equipment
Contitech FD330-22364 Airkraft 115061 Triple Convoluted Air Spring 4
R&D Center
Contitech FD330-22364 Airkraft 115061 Triple Convoluted Air Spring 5
Assembly and Forming
Contitech FD330-22364 Airkraft 115061 Triple Convoluted Air Spring 6
Vulcanization Shop
Images shown are for reference only. Actual product may vary slightly.
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?
Yes, we typically send samples via TNT, DHL, FEDEX or UPS. Delivery takes approximately 3 days. Customers are responsible for sample costs and airmail freight. Sample costs will be refunded after order placement.
WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the shipment date. For product failures within the warranty period, customers are responsible for replacement part costs.
CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM services are welcomed.
I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. We provide product sourcing services for our customers. Please provide detailed information about the items you require.
