Triple Air Bag Suspension Air Spring W01-358-7995 W013587995 Contitech FT330-29547

Triple Air Bag Suspension Air Spring W01-358-7995 W013587995 Contitech FT330-29547
Triple Air Bag Suspension Air Spring W01-358-7995 W013587995 Contitech FT330-29547 Triple Air Bag Suspension Air Spring W01-358-7995 W013587995 Contitech FT330-29547 Triple Air Bag Suspension Air Spring W01-358-7995 W013587995 Contitech FT330-29547

Large Image :  Triple Air Bag Suspension Air Spring W01-358-7995 W013587995 Contitech FT330-29547

Product Details:
Place of Origin: China
Brand Name: Yiconton
Certification: IATF16949
Model Number: 3B 5603
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiate
Packaging Details: Carton
Delivery Time: 5-8 Work Days
Payment Terms: T/T
Supply Ability: 500pieces/Month

Triple Air Bag Suspension Air Spring W01-358-7995 W013587995 Contitech FT330-29547

Description
Main Material: Rubber Bellows ,Steel Piston Product Name: Industrial Air Spring / Air Bag
Function: Reduce Shock Contitech NO.: FT330-29547/64573
Package Dimension: 34*34*23.5 Cm Other Name: Triple Convoluted Suspension Air Spring
Net Weight: 6.168kg Firestone NO.: W01-358-7995 W013587995
High Light:

Reduce Shock Suspension Air Spring

,

W013587995 Triple Air Bag

,

IATF16949 Approved Suspension Air Spring

 Triple air bag Suspension Air Spring W01-358-7995 W013587995 Contitech FT330-29547



Cross references
Automann
SP3B22R-7995
SP3B22R7995
Firestone No.
W01-358-7995
W013587995
W01 358 7995
Firestone Style
38
FleetPride
AS7995
Goodyear
3B12-315
3B12315
3B12 315
Goodyear Flex No.
578933100
Original parts
Watson & Chalin
AS-0048-1F AS00481F
AS 0048 1F

Technical Details

Top Cover Plate Diameter 231mm
Bottom Cover Plate Diameter 231mm
Gas Hole / Air inlet 1/4NPTF
Rubber Bellows MAX Diameter 330mm
The Working Stroke MAX 460 mm to MIN 130 mm





What is a convoluted air spring?


Convoluted air springs are generally used for lifting axles and preserve the tires when the vehicle is empty. Aside from that, they are also utilized in industrial applications as pneumatic lift cylinders or suspension elements to absorb vibrations. These air springs are easy to mount and they last long.



Yiconton air spring Applications



Various applications in the automotive industry, such as

--- e.g. steering damping, engine vibration damping, belts

--- tension damping for engines and driver's seats in commercial vehicles, etc.

In household products, such as washing machines

Special dampers for bicycles

On commercial lawn tractors

In the medical equipment industry, e.g. on wheelchairs

About Yiconton



We are the biggest manufacturer of air suspensions parts in China. Our products have been imported worldwide. We can provide you with quality products and good service.

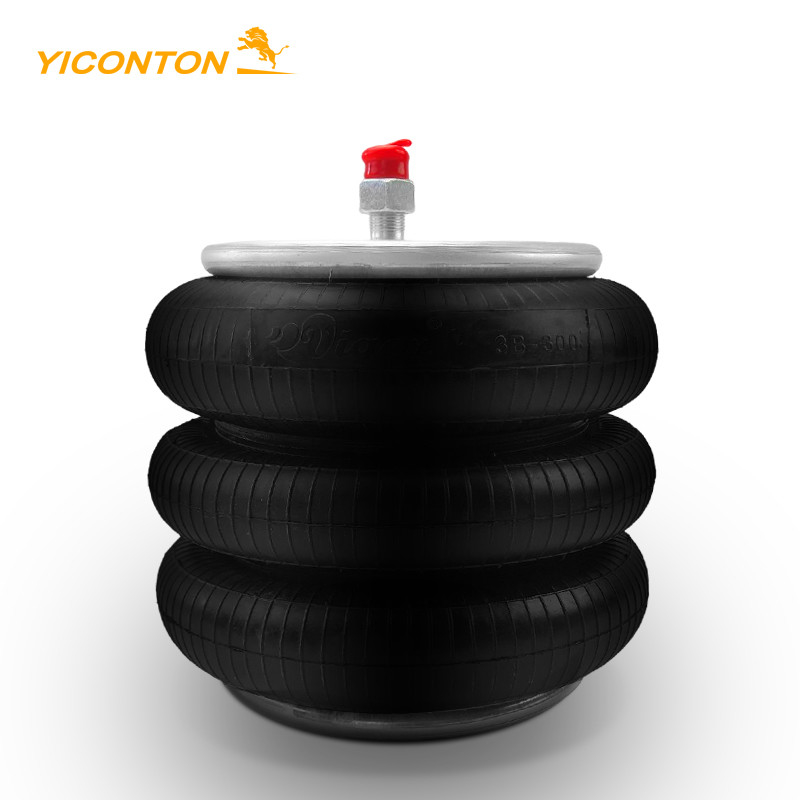

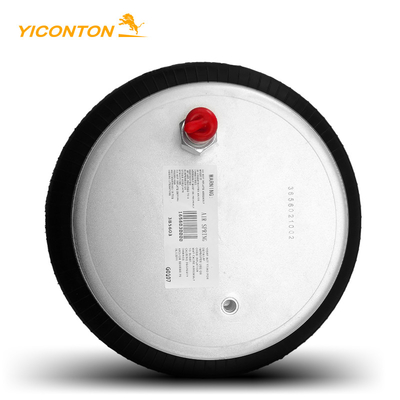

Product picture



Triple Air Bag Suspension Air Spring W01-358-7995 W013587995 Contitech FT330-29547 0

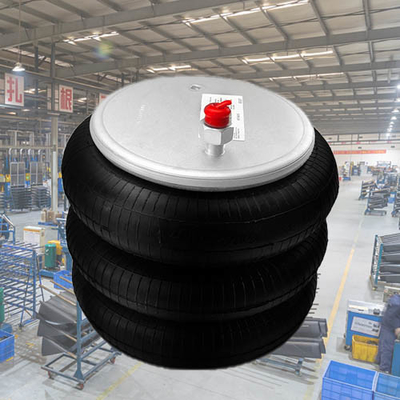

Factory picture



Triple Air Bag Suspension Air Spring W01-358-7995 W013587995 Contitech FT330-29547 1
