Steel And Rubber Truck Air Spring Firestone W01-358-6935 Contitech FD200-19499

Certification
China Yitao Air Spring Group certification
China Yitao Air Spring Group certification
I'm Online Chat Now

Steel And Rubber Truck Air Spring Firestone W01-358-6935 Contitech FD200-19499

Steel And Rubber Truck Air Spring Firestone W01-358-6935 Contitech FD200-19499
Steel And Rubber Truck Air Spring Firestone W01-358-6935 Contitech FD200-19499 Steel And Rubber Truck Air Spring Firestone W01-358-6935 Contitech FD200-19499 Steel And Rubber Truck Air Spring Firestone W01-358-6935 Contitech FD200-19499 Steel And Rubber Truck Air Spring Firestone W01-358-6935 Contitech FD200-19499

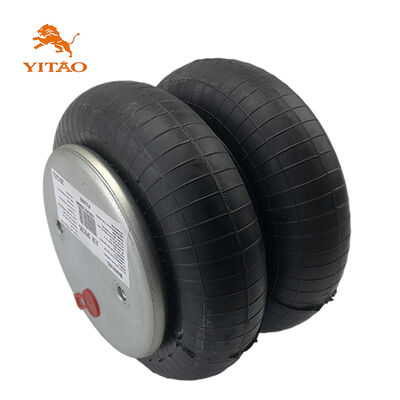

Large Image :  Steel And Rubber Truck Air Spring Firestone W01-358-6935 Contitech FD200-19499

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 2B 5251
Payment & Shipping Terms:
Minimum Order Quantity: 50pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 5-8 Work Days
Payment Terms: T/T
Supply Ability: 5000pieces/Month

Steel And Rubber Truck Air Spring Firestone W01-358-6935 Contitech FD200-19499

Description
Cross References: W01-358-6935,W01-358-6856,FD200-19499,2B9-201,S14318,003318,702932-01 Main Material: Rubber+Metal
Product Name: Double Convoluted Air Spring Warranty: 12 Months
Typical Shipping Time: 3-10 Days Bellows Type: Double Convoluted
Operation: Gas-filled Net Weight: 3.89 Kg
Package Dimension: 24*24*24 Mm Plate Dia: 160mm
Packing: Neutral Packing Or Customized Packing

Steel And Rubber truck air spring Firestone W01-358-6935 Contitech FD200-19499



Cross references
Automann
SP2B12R-6935
Firestone No.
W01-358-6935
Firestone No.
W01-358-6856
Firestone Style
20
FleetPride
AS6935
Goodyear
2B9-201
Goodyear Flex No.
578923202
Road Choice
RC62C19 6935
Taurus
6325
Triangle
AS-4499
TRP
AS69350
Contitech
FD200-19499
Original parts
R&S Truck
1027505
Granning
4848
Loadguard
SC2010
Navistar/Fleetrite
554784C1
Hendrickson
S-14318
Hendrickson
3318
Sauer
P50-733A
Suspensions, Inc.
200042
Granning
702932-01
Meritor
201548
Navistar/Fleetrite
2B9-491
Freightliner
16-14318-000
Taurus
AS218-6902
Ridewell
S1728C
Technical parameters


Nut / Blind Nut



Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 89 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 89 mm



Gas Hole / Air inlet / Air Fitting



Gas Hole / Air inlet : 1/4-18NPTF

Screw Center Distance Between Gas Hole and Nut : 44.5 mm





Cover Plate



Top Cover Plate Diameter: 160 mm

Bottom Cover Plate Diameter: 160 mm



Rubber Bellows



Rubber Bellows MAX Diameter: 251 mm

Rubber Bellows Natural Diameter : 224 mm

The Working Stroke : MIN 75 mm to MAX 260 mm

Maximum Height : 274 mm

Minimum Height :95mm

Stroke Height : 179mm



Features


* Features with heavy duty double convoluted crimped design which allows safe and comfortable load capacity up to 2500 pounds.
* Built to strict quality control standards.
* Designed for Comfort Suspension.
* Bring better handling and ride comfort.


Benefits



Require little to no maintenance
Pressure tested for quality assurance
Increase towing and hauling capabilities
Replace worn out oem air bags
Increase life of other suspension components
Manufacturer: Firestone
Double Convoluted Air Bag



About YITAO



We are the biggest manufacturer of air suspensions parts in China. Our products have been imported worldwide. We can provide you with quality products and good service.

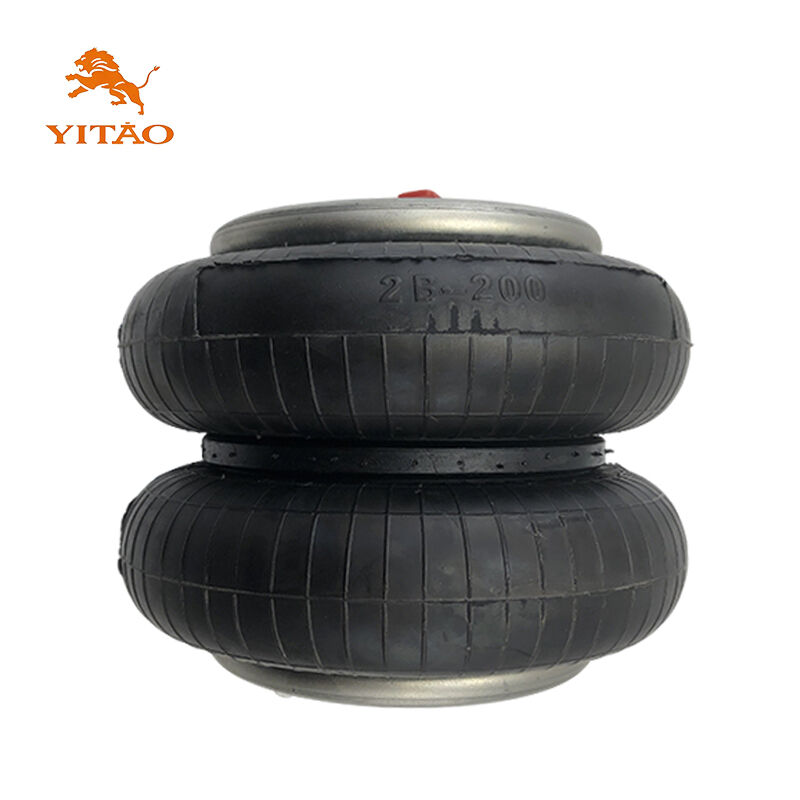

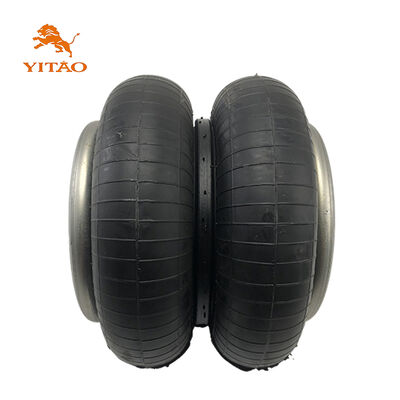

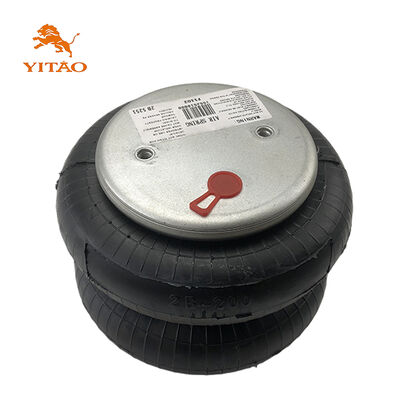

Product picture

Steel And Rubber Truck Air Spring Firestone W01-358-6935 Contitech FD200-19499 0

Steel And Rubber Truck Air Spring Firestone W01-358-6935 Contitech FD200-19499 1

Factory Showcase
Steel And Rubber Truck Air Spring Firestone W01-358-6935 Contitech FD200-19499 2
Factory Overlook
Steel And Rubber Truck Air Spring Firestone W01-358-6935 Contitech FD200-19499 3
Quality Control Inspection
Steel And Rubber Truck Air Spring Firestone W01-358-6935 Contitech FD200-19499 4
Manufacturing Equipment
Steel And Rubber Truck Air Spring Firestone W01-358-6935 Contitech FD200-19499 5
R&D Center
Steel And Rubber Truck Air Spring Firestone W01-358-6935 Contitech FD200-19499 6
Assembly and Forming
Steel And Rubber Truck Air Spring Firestone W01-358-6935 Contitech FD200-19499 7
Vulcanization Shop
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?

Yes, we typically send samples via TNT, DHL, FEDEX or UPS. Delivery takes approximately 3 days. Customers are responsible for sample costs and airmail freight. Sample costs will be refunded after order placement.

WHAT IS YOUR WARRANTY TERM?

Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the shipment date. For product failures within the warranty period, customers are responsible for replacement part costs.

CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?

Yes, OEM services are welcomed.

I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?

Yes. We provide product sourcing services for our customers. Please provide detailed information about the items you require.
